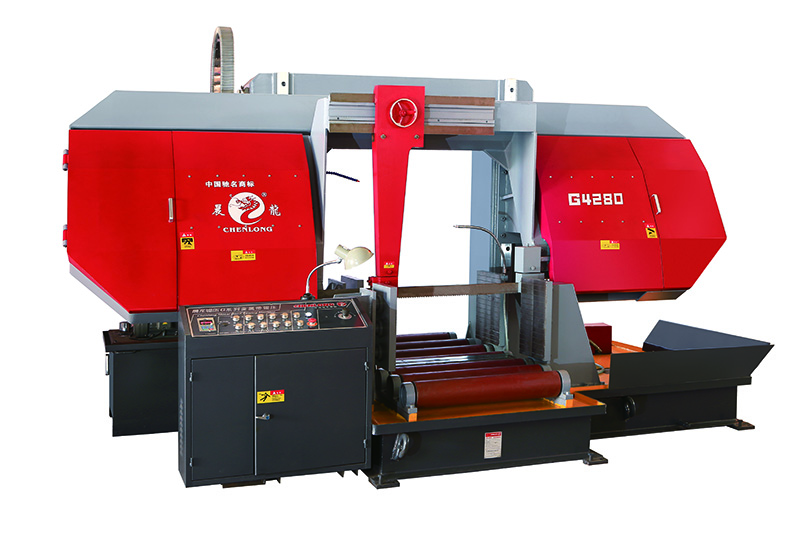

G4280 Metal Iron Gantry Double Column Bandsaw Machine

Product Categories

Zhejiang Chenlong Sawing Machine Co., Ltd.

Contact Now

Name: G4280 Metal Iron Gantry Double Column Bandsaw Machine
Brand: CHENLONG
Price: 1 USD

Brand Name : CHENLONG

Certification : CE,ISO9001,ISO14001,OHSAS18000

Place of Origin : Zhejiang, China

MOQ : 1 Set/Sets

Price : Negotiable

Supply Ability : 500 Piece/Pieces per Month

Delivery Time : 40workdays

Packaging Details : NUDE

Power (kW) : 7.5(4P)

Blade size : 67x1.6x8820 mm

Workpiece clamping : hydraulic

Dimension(L*W*H) : 4130x2150x2500mm

Controlling Mode : semi-automatic

Warranty : 1 year

Blade tension : hydraulic

Contact Now

CHENLONG Horizontal Band Saw Machine Steel Metal Iron PlateCut Gantry G4280

Function:

1. Hydraulic blade tension

2. Length stopper

3. Saw frame height selector gauge

4. Inverter control the saw blade line speed

Product parameters
Model Name	New	CH-800
	Original	G4280
Max.cutting	Round	800mm
capacity	Quadrate	800×800mm
Saw blade	Speed	18-60m/min
	Size	67x1.6x8820mm
	Guides	Carbide and bearing blade guides
	Cleaning	Wire brush & flood coolant
	Tension	hydraulic
Motor output	Blade	7.5kw
	Hydraulic	2.25kw
	Coolant	0.09kw
Work Vice		Hydraulic
Machine Weight		3800kg
Machine Size(L×W×H)		4130×2150×2500 mm
Standard Equipment:
1. Blade cleaning brush.
2. Working light
3. Saw frame height selector gauge
4. Out feed with auxiliary plate table
5. One piece of bi-metal saw blade.
6. One set of tools with tool box
7. Roller table 1.5M long

G4280 Metal Iron Gantry Double Column Bandsaw Machine
